产品中心

  • 类别 WYPB3080T380C/L380C WYPB3080T440C/L440C WYPD3080T380C/L380C WYPD3080T440C/L440C WYPB3100T380C/L380C WYPB3100T440C/L440C WYPD3100T380C/L380C WYPD3100T440C/L440C WYPB3120T380C/L380C WYPB3120T440C/L440C WYPD3120T380C/L380C WYPD3120T440C/L440C WYPB3160T380C/L380C WYPB3160T440C/L440C WYPD3160T380C/L380C
  • 型号 三相接地 端子& 线缆型(计数器) -3W+G- (内置保险)
  • 等级(Rating) AC 380, 440V (80kA, 100kA, 120kA, 160kA, 200kA, 240kA)
  • 输入(Input) AC 380, 440V
  • 输出(Output)
  • 容量(Capacity) 80kA, 100kA, 120kA, 160kA, 200kA, 240kA

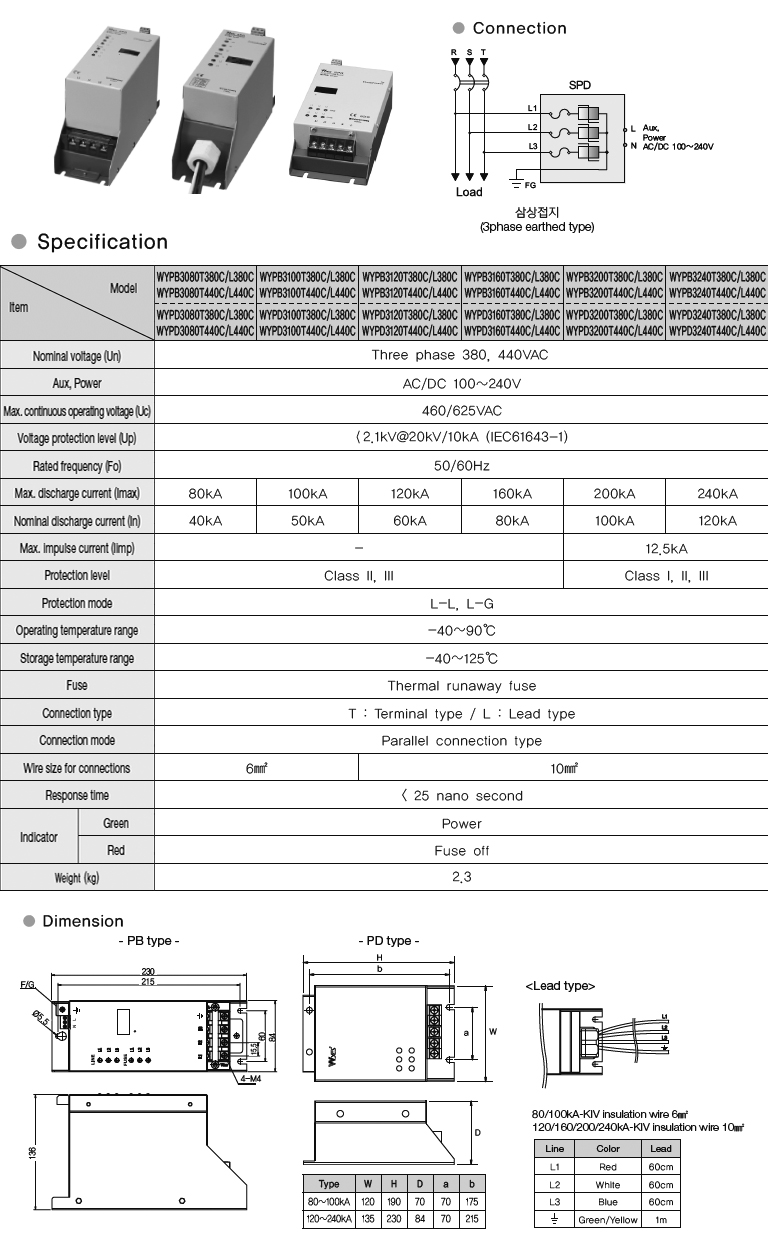

  • Specifications and Features

  • - There shall be no effect on the system in a normal state
    - It shall be stable when operating or in a trouble (Thermal runway
       prevention circuit)
    - The voltage interception for a protection terminal shall be
       constant.
    - Shall respond at a high speed.
    - Shall be convenient to maintain and repair.
    - There shall be few leakage currents.
    - Shall have a continuous breaking ability
