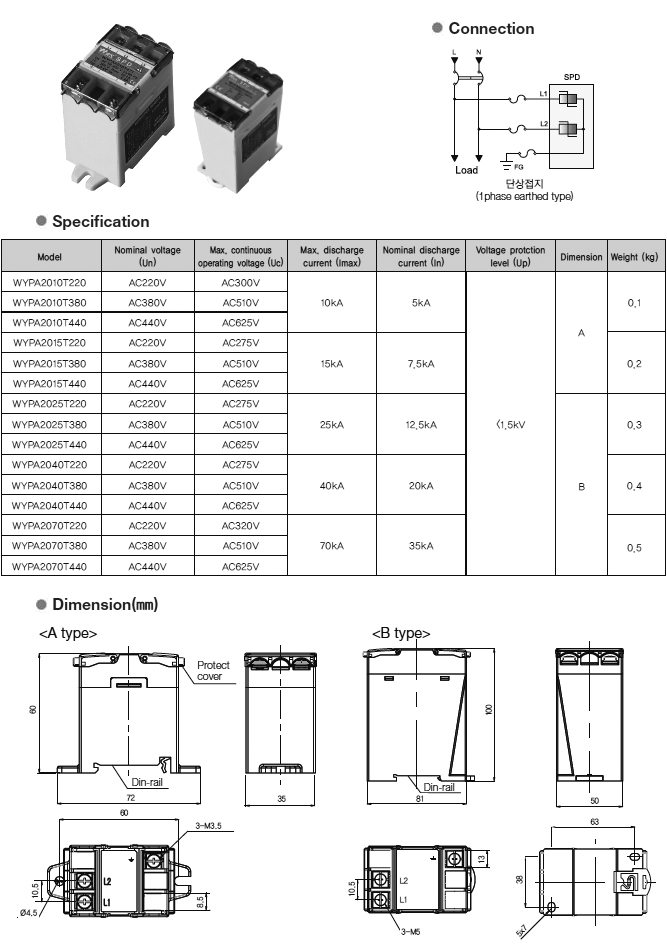

  • 类别 WYPA2010T220 WYPA2010T380 WYPA2010T440 WYPA2015T220 WYPA2015T380 WYPA2015T440 WYPA2025T220 WYPA2025T380 WYPA2025T440 WYPA2040T220 WYPA2040T380 WYPA2040T440 WYPA2070T220 WYPA2070T380 WYPA2070T440
  • 型号 单相 -2W+G- (导轨)
  • 等级(Rating) AC220~440V (10kA~70kA)
  • 输入(Input) AC220~440V
  • 输出(Output)
  • 容量(Capacity) 10kA~70kA
  • Specifications and Features

  • - There shall be no effect on the system in a normal state
    - It shall be stable when operating or in a trouble (Thermal runway
       prevention circuit)
    - The voltage interception for a protection terminal shall be
       constant.
    - Shall respond at a high speed.
    - Shall be convenient to maintain and repair.
    - There shall be few leakage currents.
    - Shall have a continuous breaking ability
